Econo Series

REAGENT SYSTEM

A Fully Automated, Robust Locally Designed Unit

Application

The “Econo Series“ Reagent units are used for the volumetric addition, preparation, hydration and dosing of a variety of powder and liquid polymers. A robust designed system, compliant with SANS, SABS, ANSI, ISO and other relevant specifications and regulations. The high standards of workmanship, fabrication and quality make it highly effective and compete in mining, process, pulp & paper, water treatment and underground applications.

Features

  • Pre–Engineered unit
  • Robust material construction

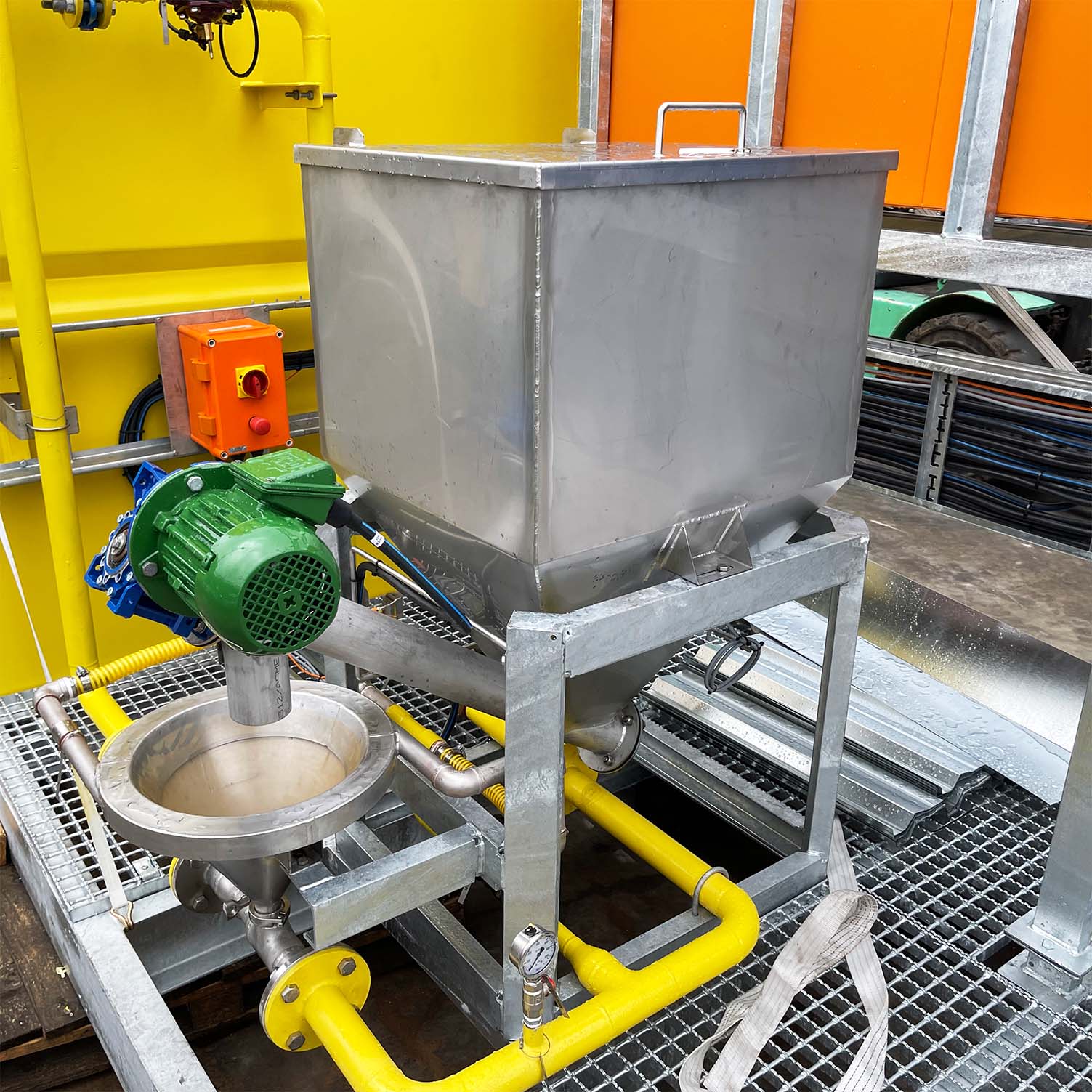

  • Stainless steel screw feeder & hopper
  • Correctly sized stirrer and pumps
  • Positive displacement Rotor or Diaphragm pump
  • Interlock protection for all critical components
  • Minimum of IP55 protection on all components

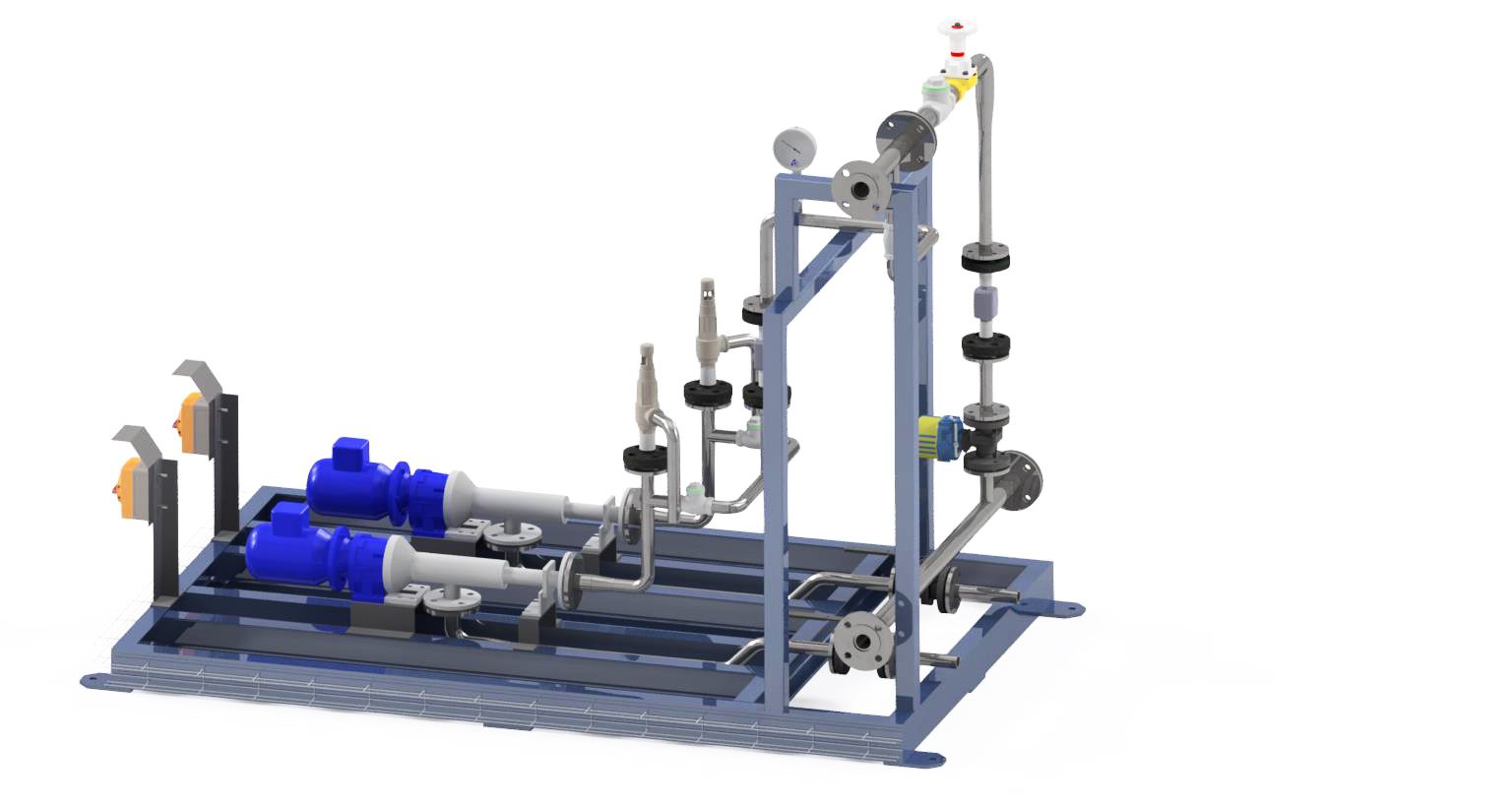

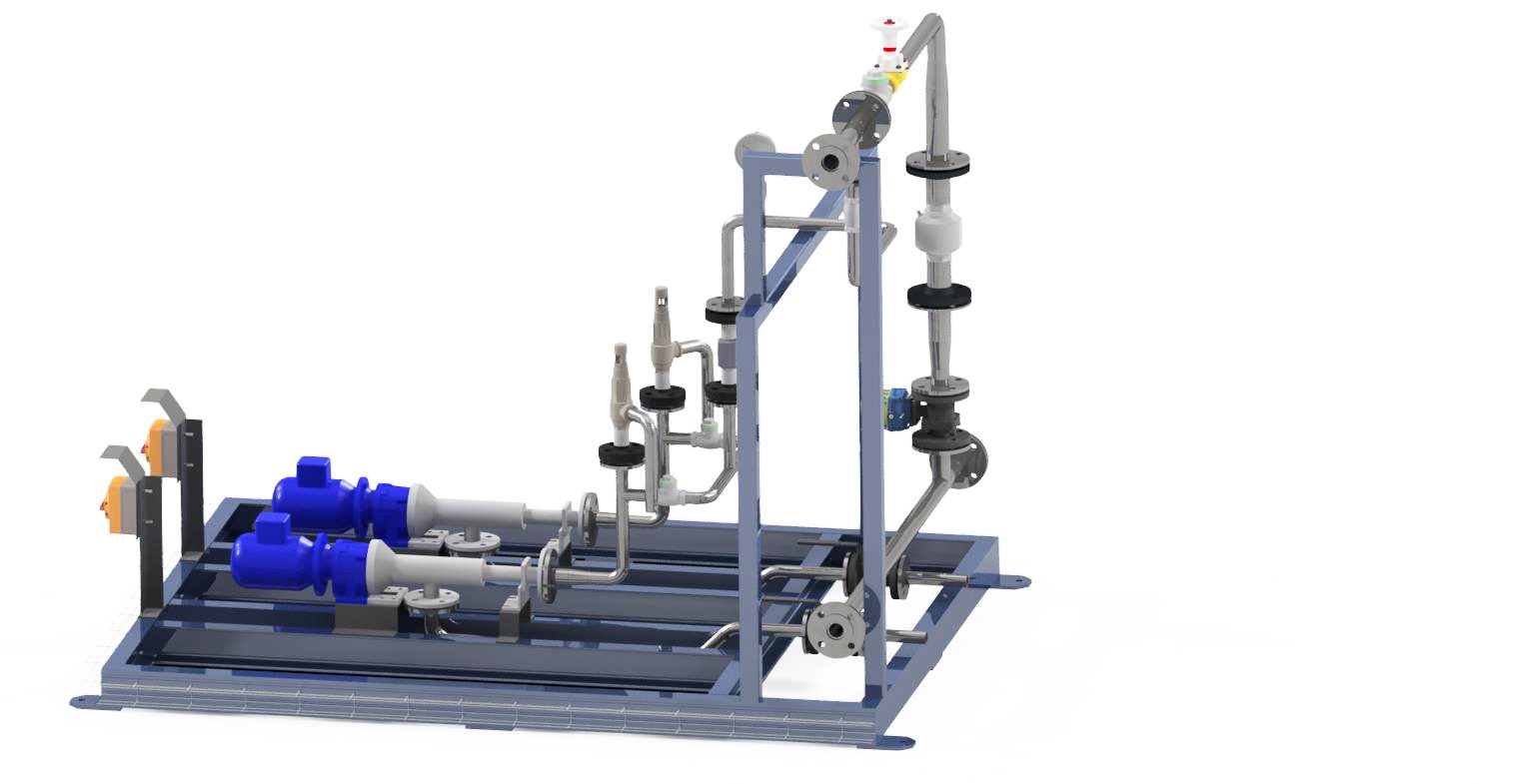

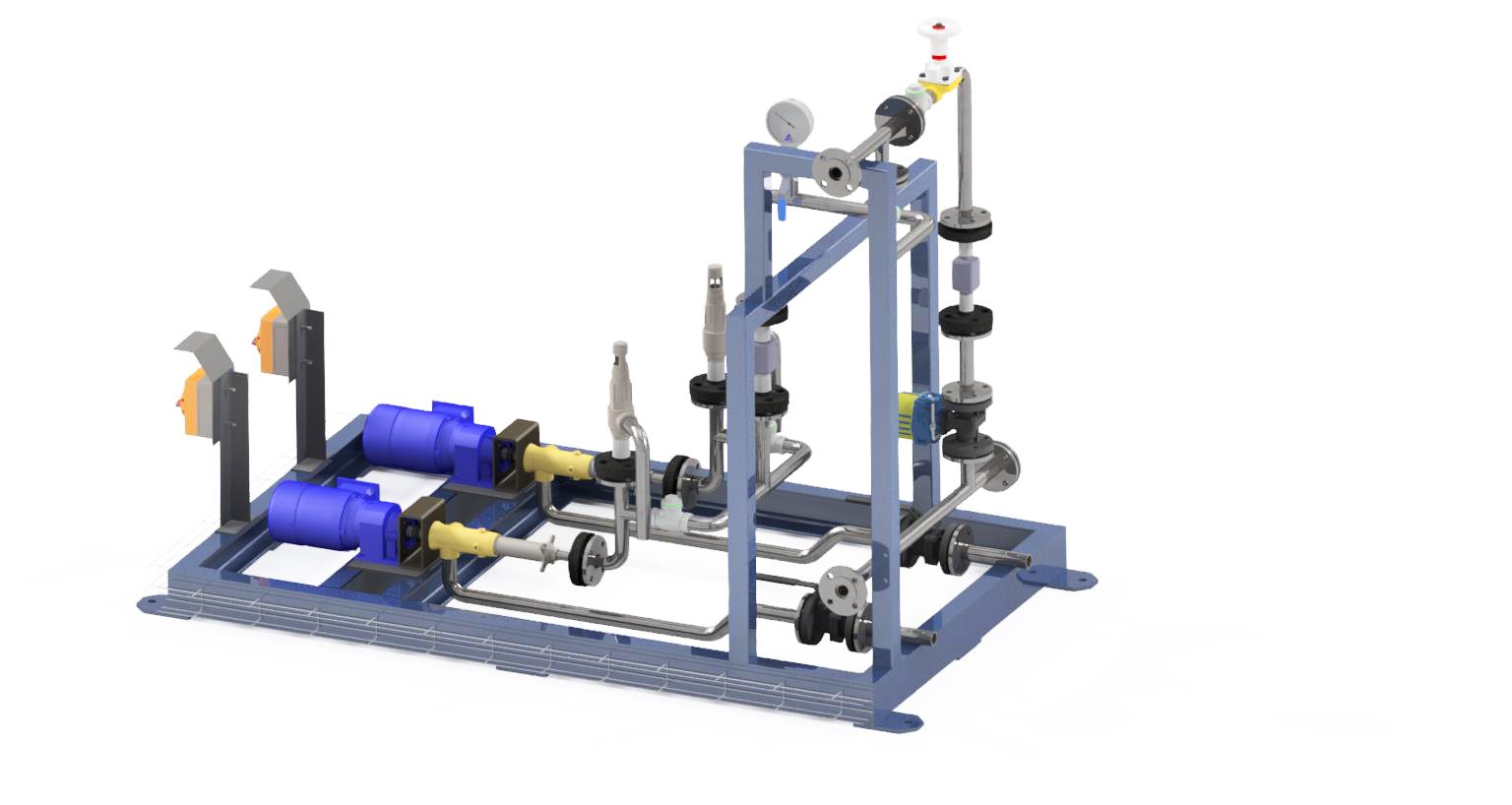

  • Skid mounted for ease of installation or relocation
  • Units Available: Batch, Continuous and Quick Change
  • Conversion between Liquid and Powder possible
  • Compliant to engineering requirements and standards

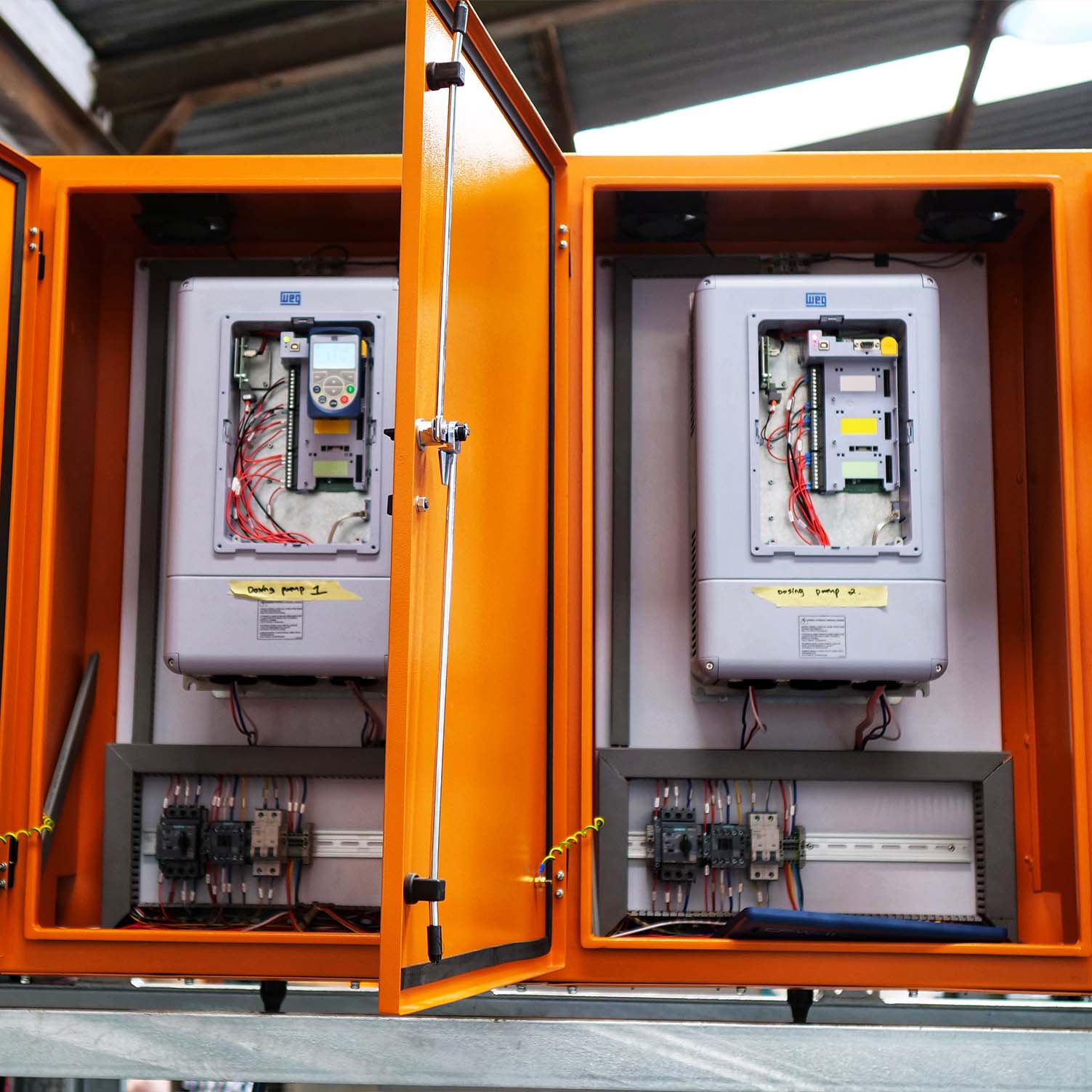

  • Control Panel with VSD Drives on demand

Options & Selections

  • Various materials of construction can be selected based
    application requirements, Poly Propylene, Carbon Steel,
    3CR12 and all grades of Stainless Steel
  • Units can be built with Open or Closed Tops with Inspection
    hatches
  • Pump selection is process based with Rotor-Stator, Peristaltic
    or Diaphragm types available
  • Different Bag delivery options catered for such as 25Kg, and
    Bulk Bags in several formats
  • Two or Three Chamber units available based on process
    requirements

Benefits

  • Fully Automated
  • Low maintenance & opera\onal costs
  • Accurately sized components
  • Maximum working & efficiency of polymer
  • Hydration times of 1,5 hrs & better
  • Flexible concentration parameters
  • Low transport & installation costs
  • Short & prompt commissioning times
  • In-house engineering & manufacturing
  • Compatible to powder polymer & liquid latex
  • No excessive energy or shearing during make-up
  • Standard Models selection from 200g/Hr to 250 kg/Hr
  • Simplistic Operator & User Interface

Operation

1. Low level in dosing chamber initialises the make-up cycle

2. The correct amount of polymer is added to the make-up chamber via the fixed screw feeder

3. The slurry is agitated to ensure adequate mixing and dissolving

4. Prepared batch is forwarded or pumped to a hydration and with certain reagents to a dosing chamber

5. Based on plant demand is pumped to the process.

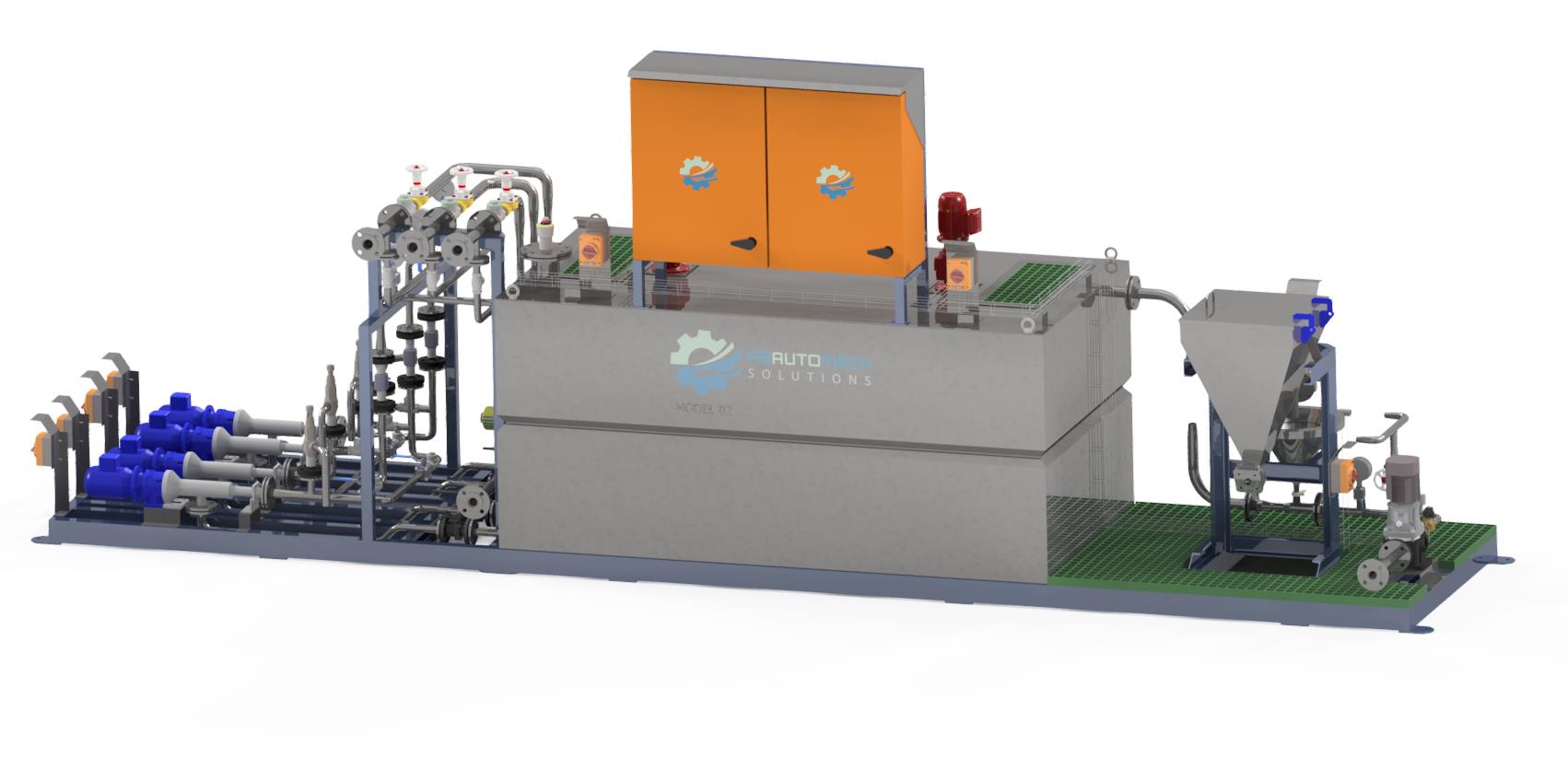

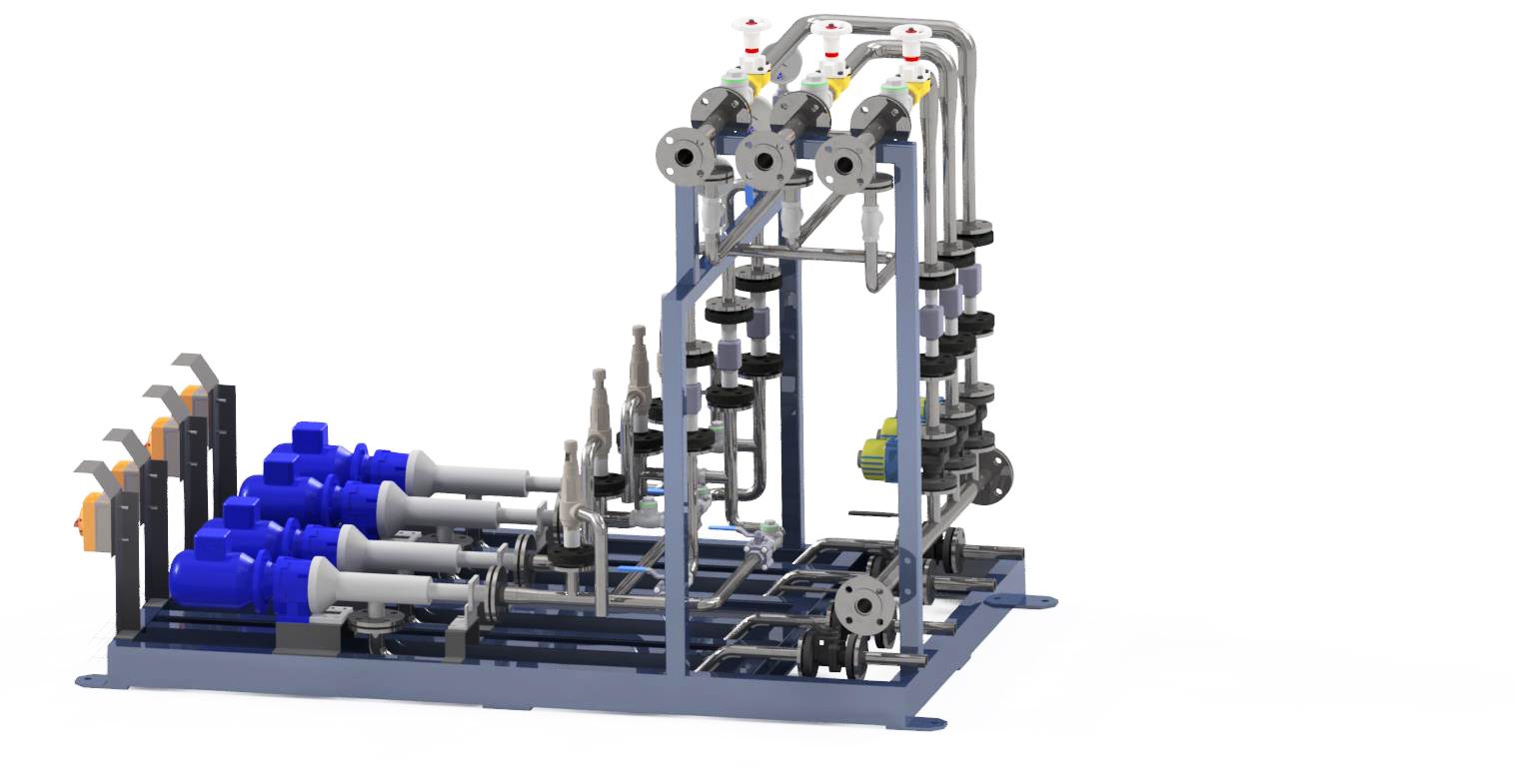

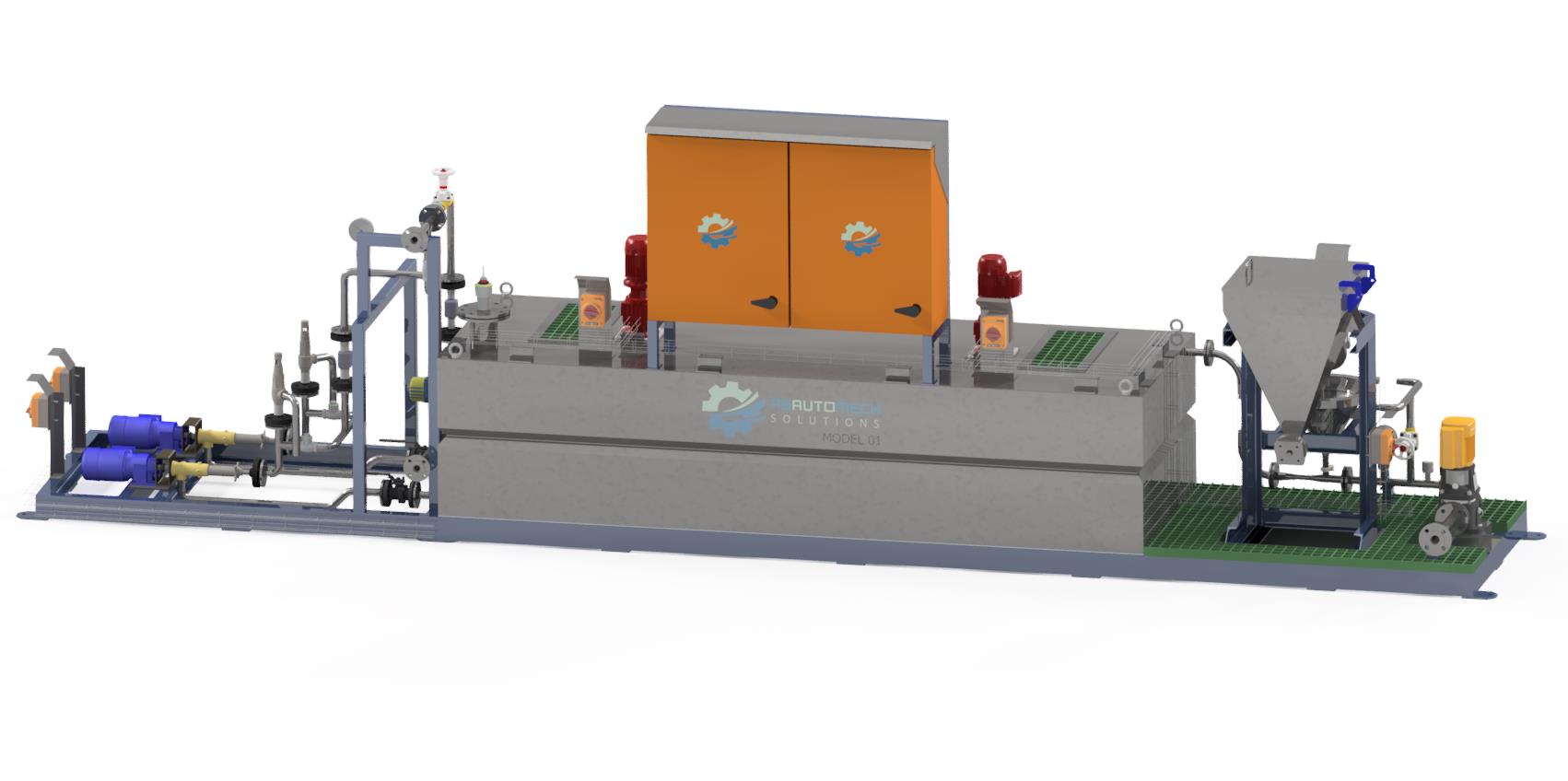

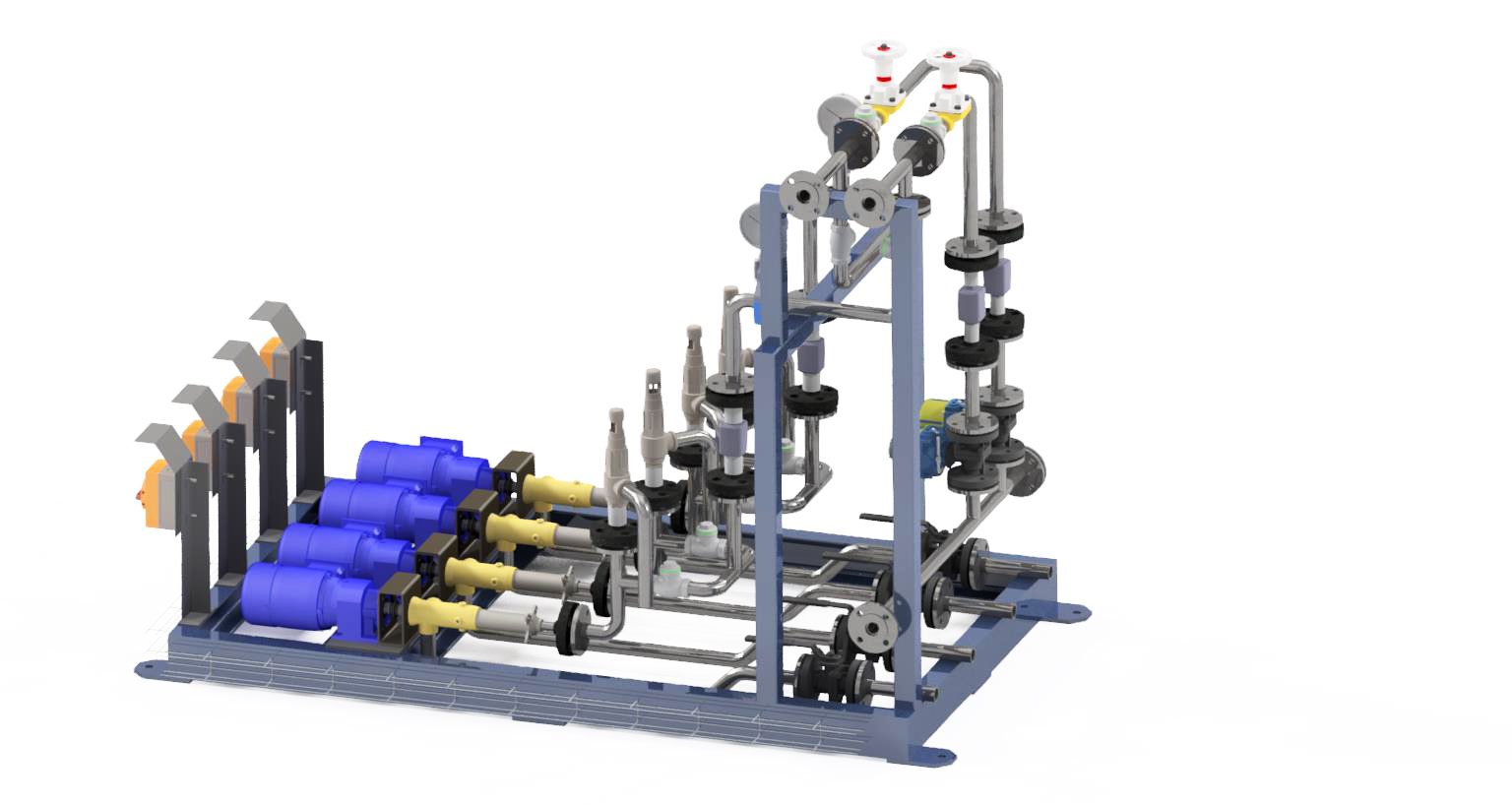

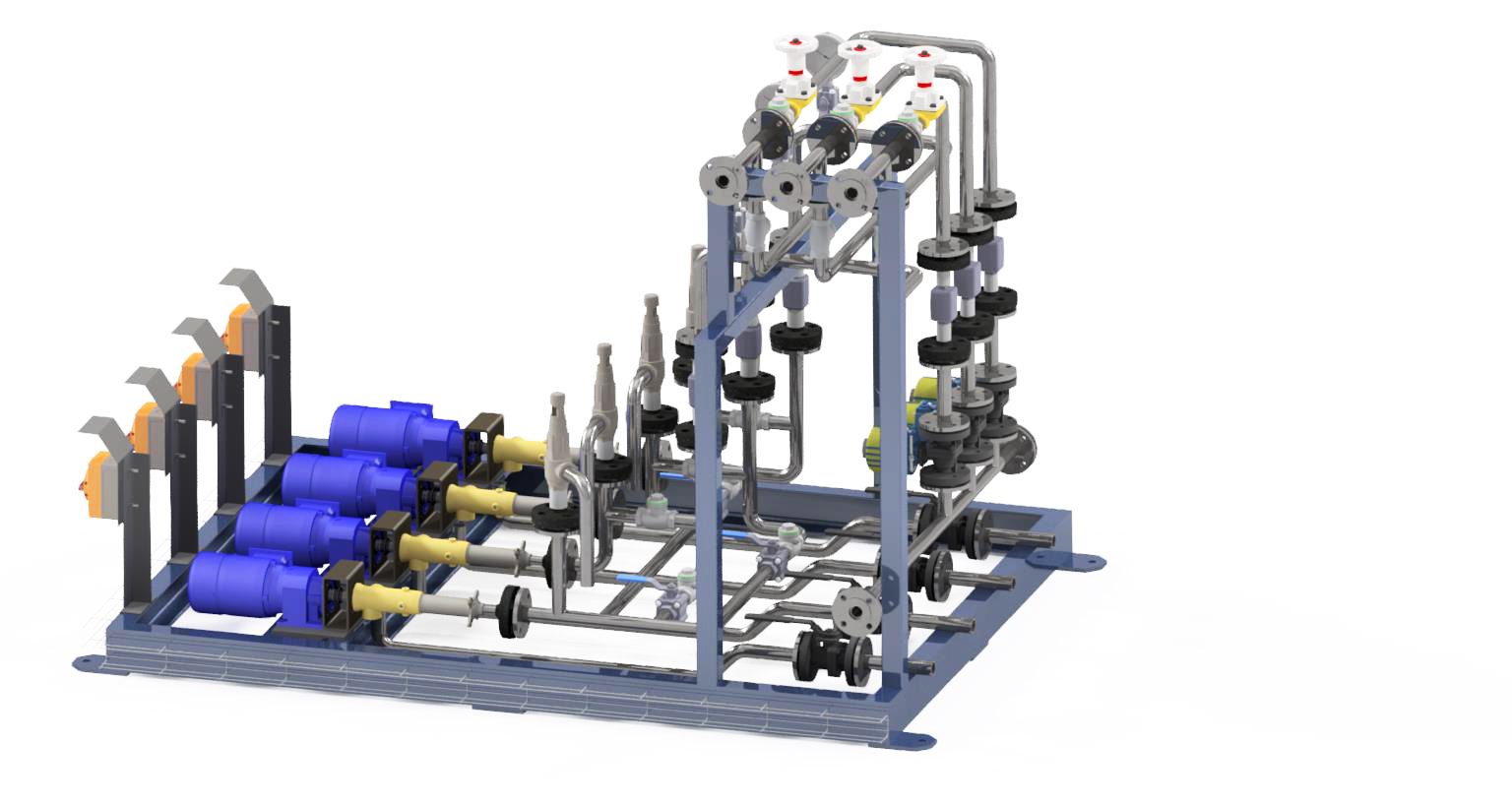

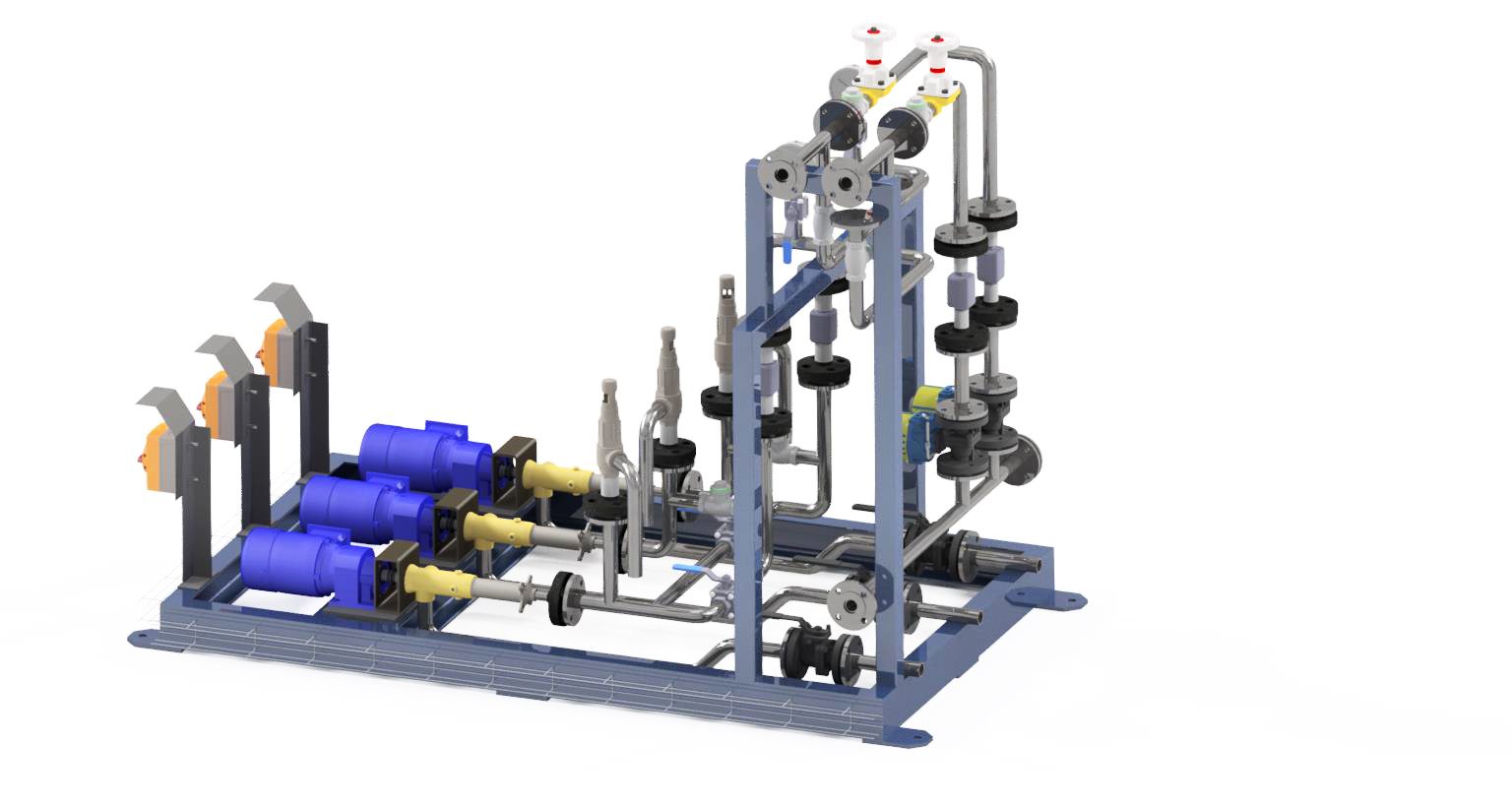

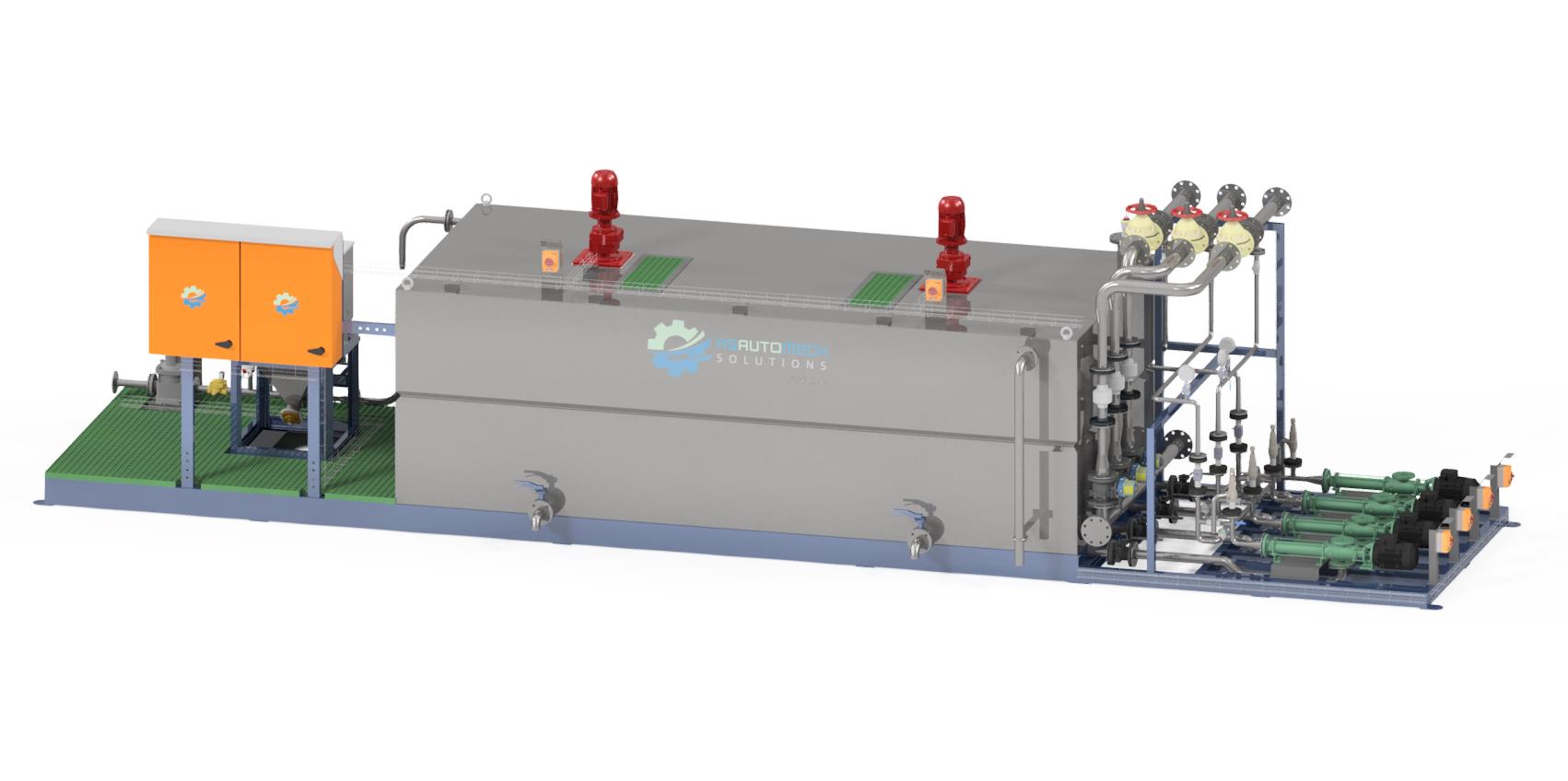

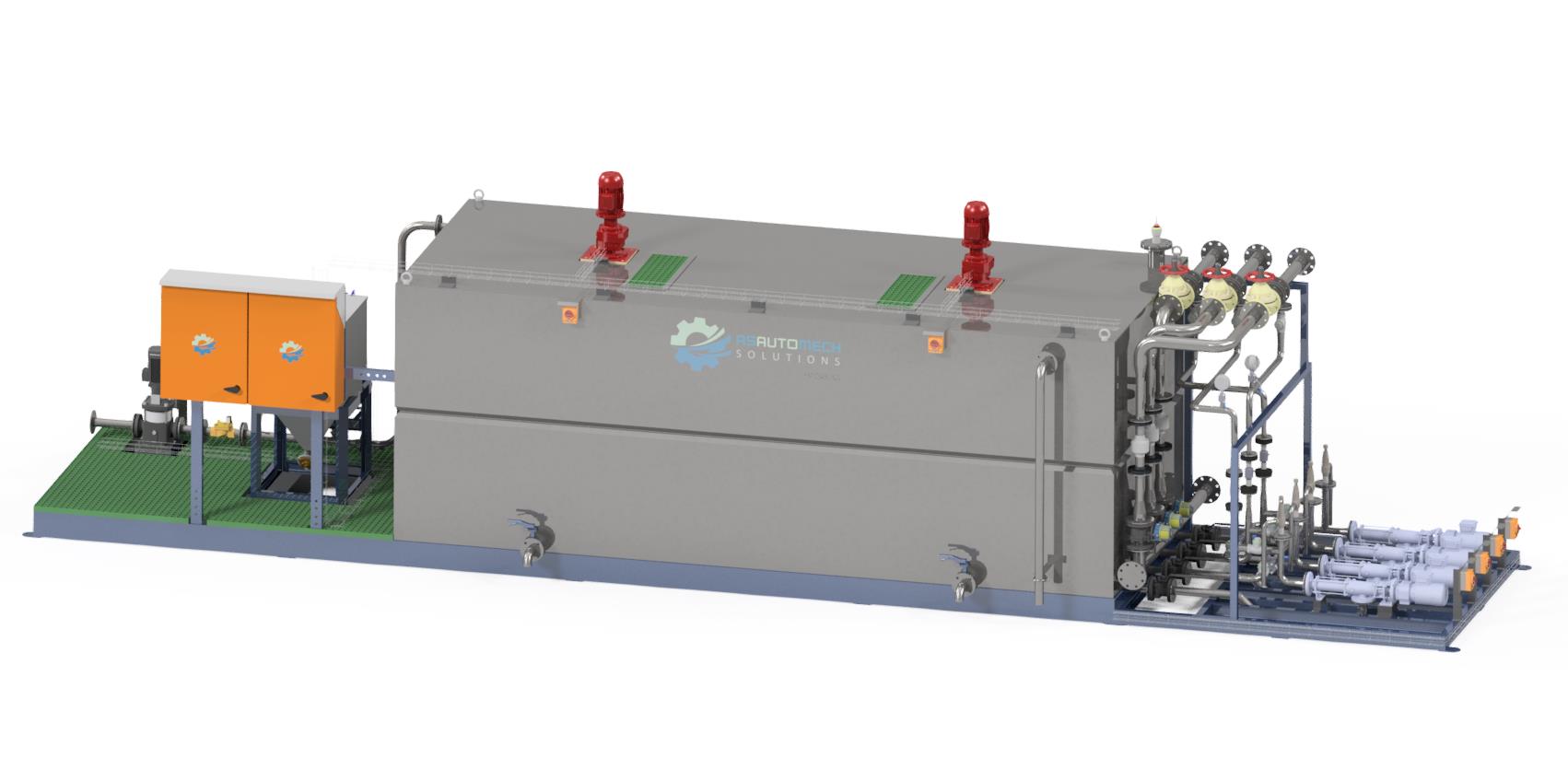

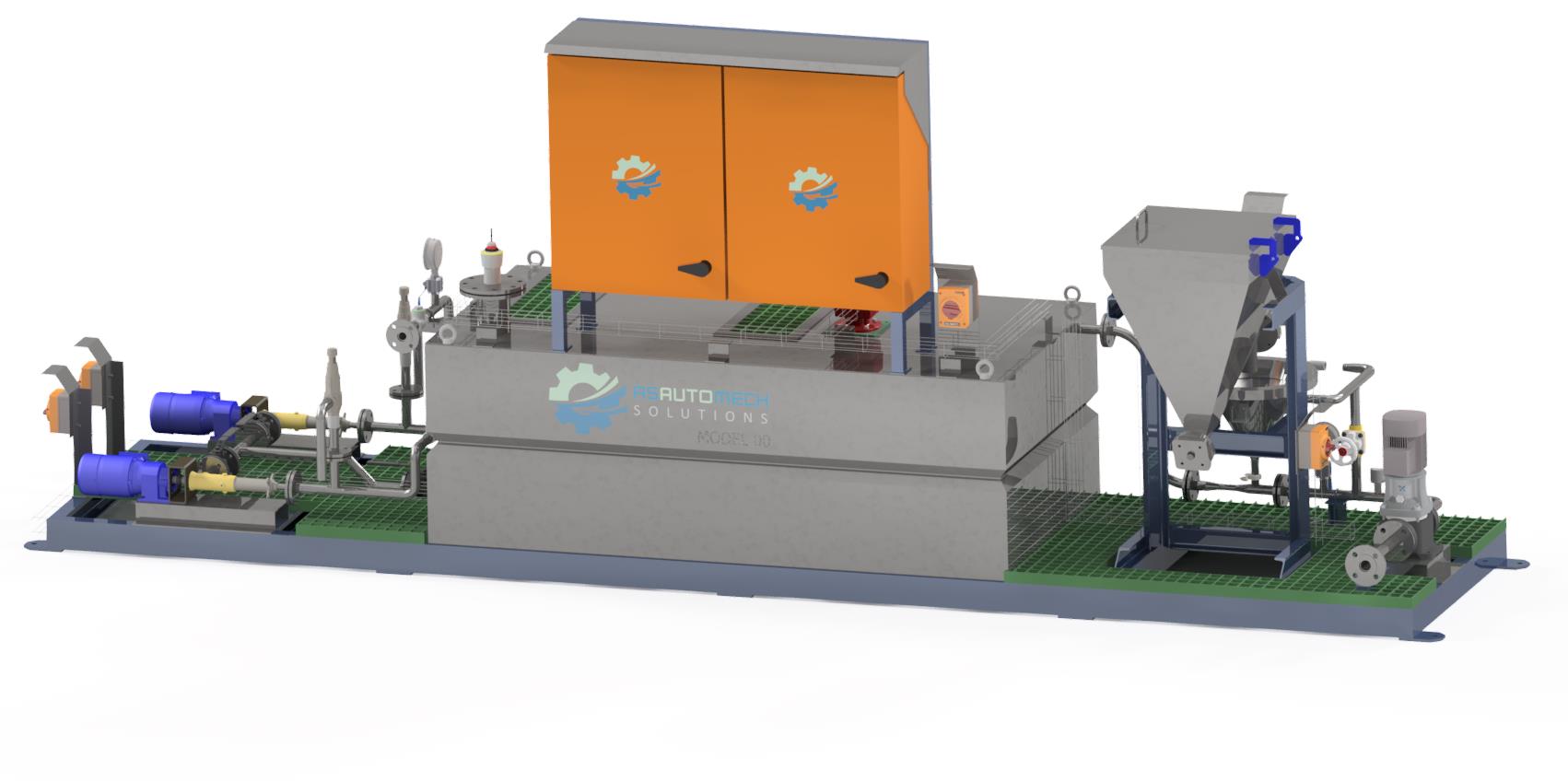

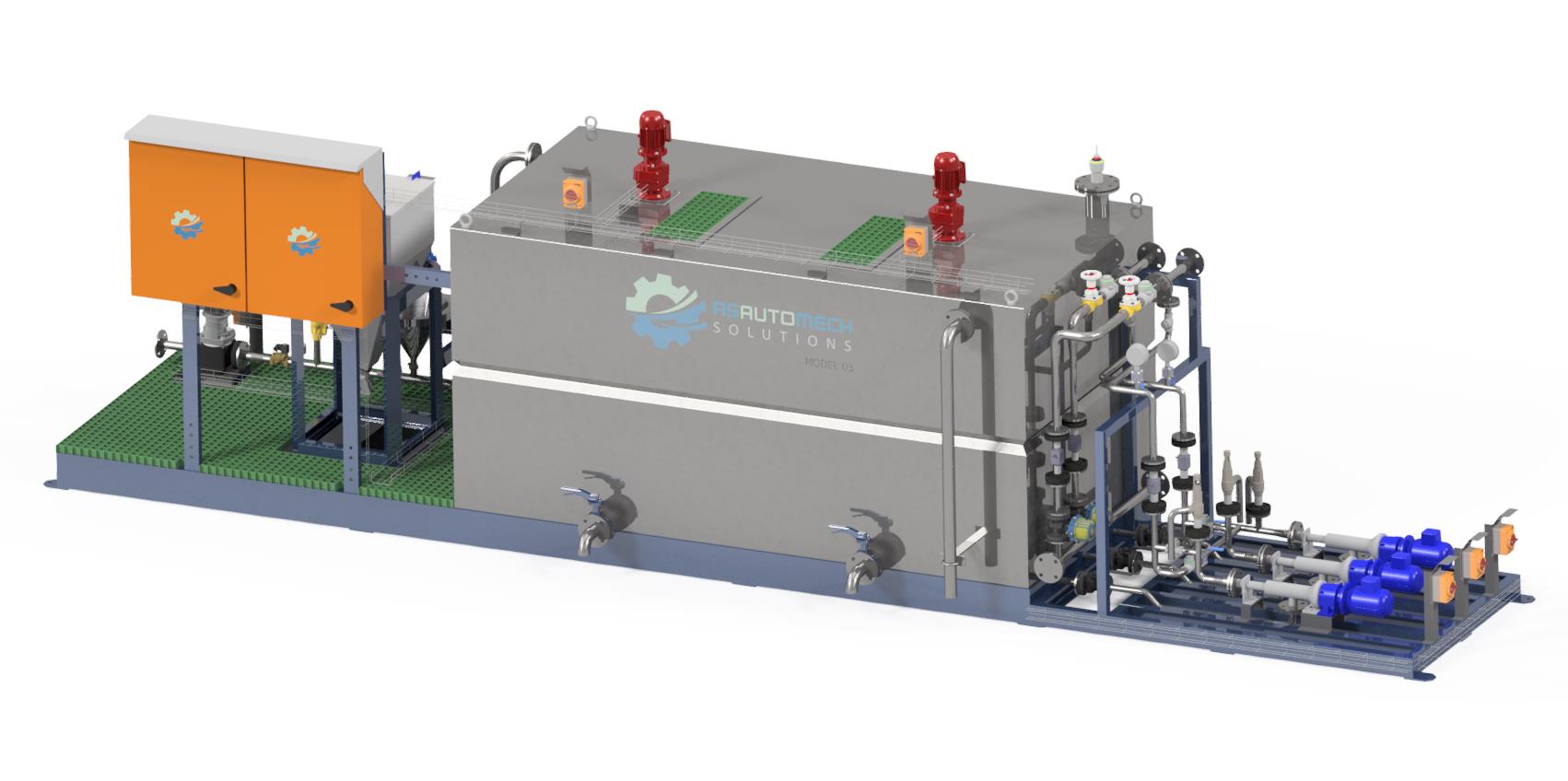

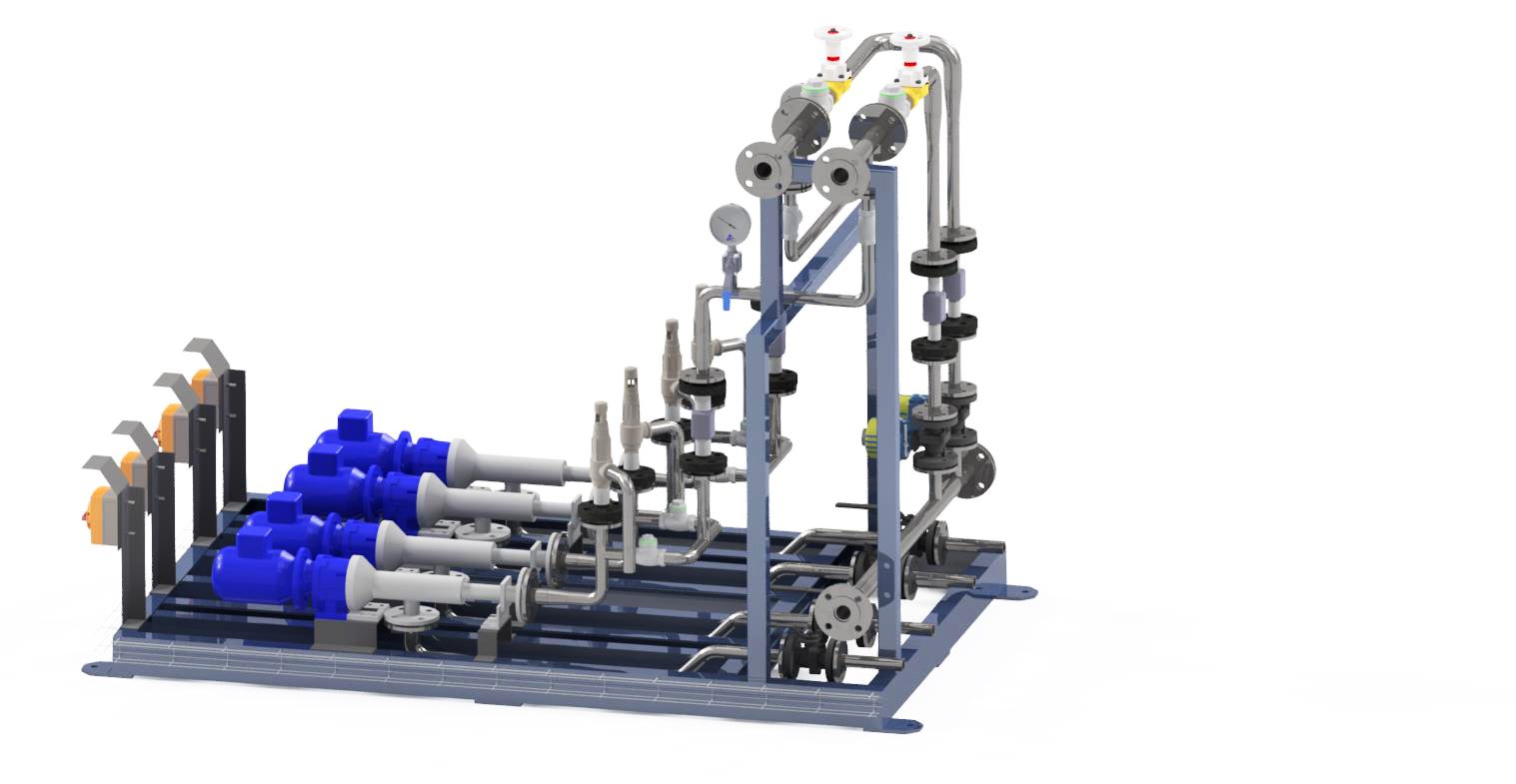

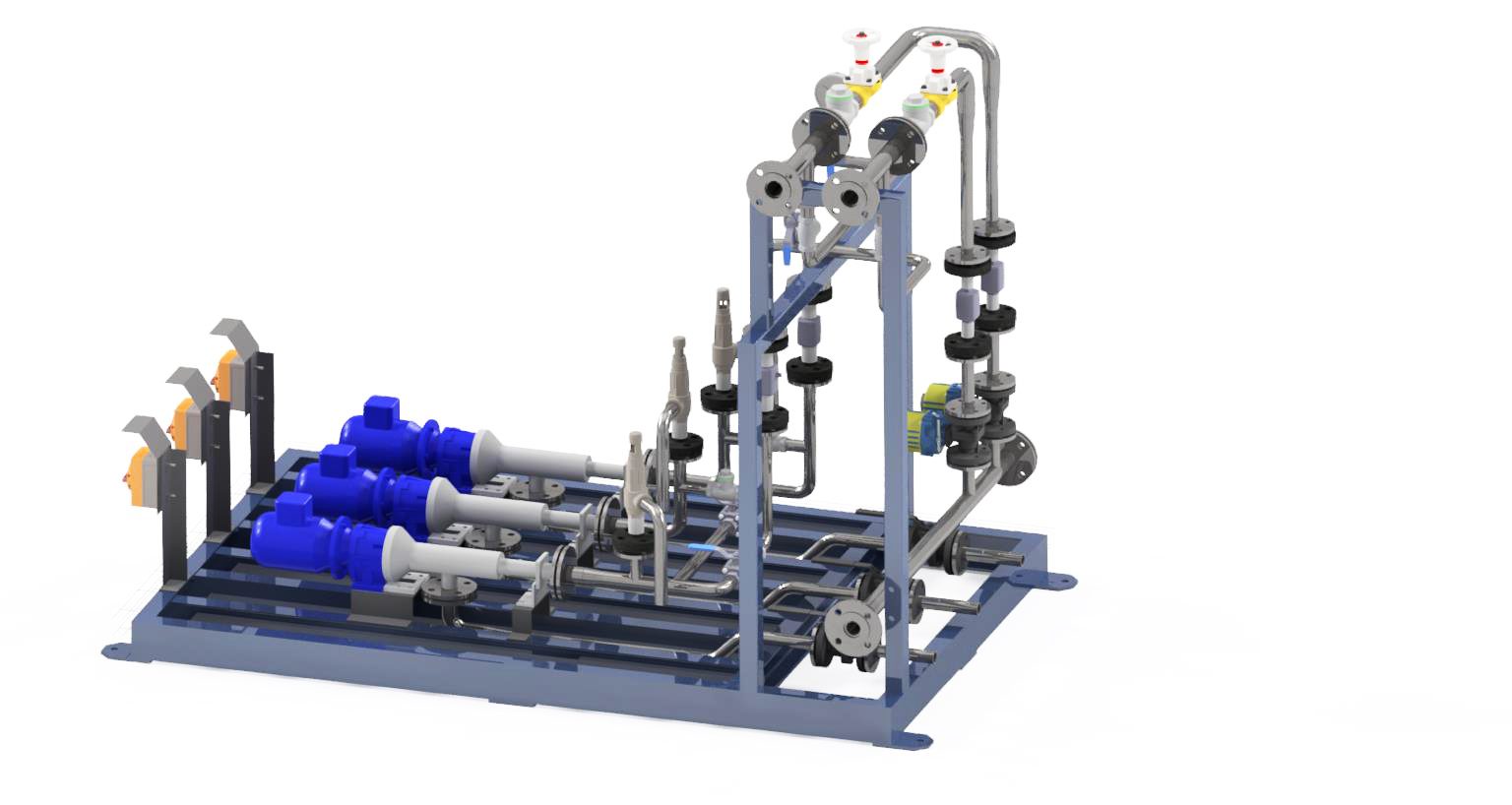

Econo Series models

“We engineer and develop equipment and systems for INDUSTRIAL SOLUTIONS in the Advanced Water Treatment, Mining Reagent Systems, and Food Processing Industries.”
